CONSTRUCTION: The Raised Panel Doors are made from hot-dipped 25 Ga. or 24 Ga. galvanized steel secured to heavy duty 20 Ga. pre painted stiles with both toggle locks and waterproof adhesive. Optional textured ABS vinyl-backed 3/4" polystyrene insulation is bonded to each section to provide quiet, energy-efficient operation.
NOMINAL SPECIFICATIONS:
-
Section Joint: Tongue and Groove joint between sections
-
Thickness: 2", all sections have hemmed edges
-
R Value: Insulated models R=4.3
-
Traditional Panel size: 20"x14" (Models: 501 & 401) & (Insulated Models 511 & 411)
-
Ranch Panel size: 42"x15" (Models 502 & 402) & (Insulated Models 512 & 412)
-
Finish: Baked on polyester enamel
-
Colors selection: White, Brown, Almond, Sandstone
-
Bottom weather seal: U-shape loop type vinyl with aluminum retainer
STANDARD WIDTHS:
|
8'-0"
|
9'-0"
|
10'-0"
|
12'-0"
|
14'-0"
|
15'-0"
|
16'-0"
|
18'-0"
|
Traditional Panels
|
4
|
4
|
5
|
6
|
7
|
8
|
8
|
9
|
Ranch Panels
|
2
|
2
|
2
|
3
|
3
|
4
|
4
|
4
|
STANDARD HEIGHTS:
|
7'-0"
|
8'-0"
|
9'-0"
|
10'-0"
|
11'-0"
|
12'-0"
|
14'-0"
|
Sections
|
4-21"
|
3-18", 2-21"
|
6-18"
|
2-18", 4-21"
|
5-21"
|
1-18", 6-21"
|
8-21"
|
OPTIONS:
-
Widths up to 18' in one inch increments, heights up to 14' in three inch increments
-
3/4" ABS vinyl-backed polystyrene insulation
-

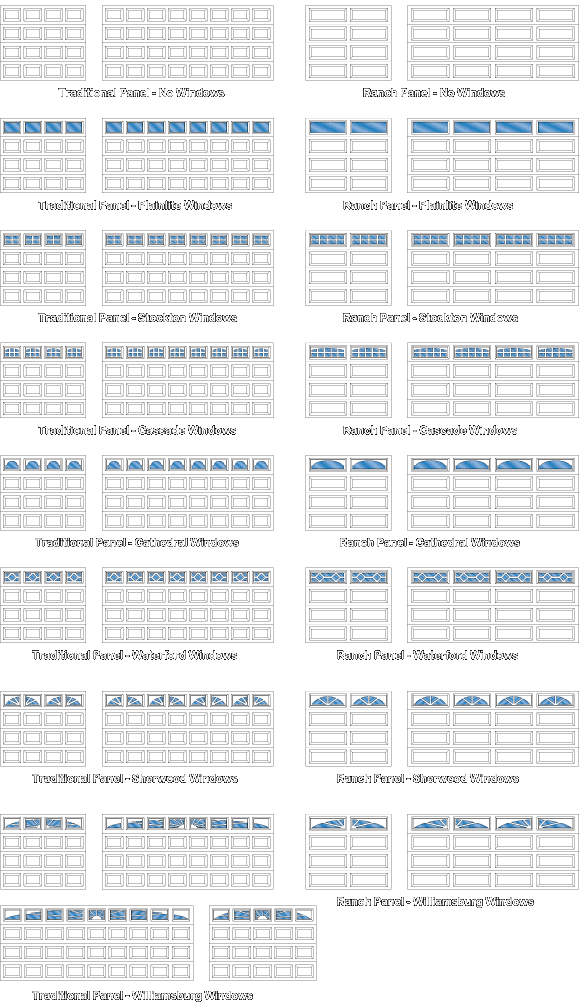

7 Window Designs, see "Design Page"
-
25,000, 50,000 & 100,000 cycle torsion springs
-
1/8" clear annealed glass standard, check availability in your area for other glass
-
Low clearance, high lift or vertical lift track and hardware also available
HARDWARE: 15" or 12" radius torsion hardware; track is 2" bracket mounted. Quiet long life nylon rollers, non corrosive door fixtures and graduated hinges are standard. U-shaped galvanized struts are supplied with every double car door to keep the door rigid.
AVAILABLE COLORS*:
* The actual color may slightly vary from what you are seeing, depending on the color calibration of your computer monitor.
|
|
|
