NWD Infinity Classic

Combining the elegance of a wooden carriage house style door with the latest manufacturing technology to create the new all-aluminum Infinity Classic™. Infinity Classic's weather resistant durability is unsurpassed and with proper maintenance will virtually last the life of your home with "Everlasting Elegance".

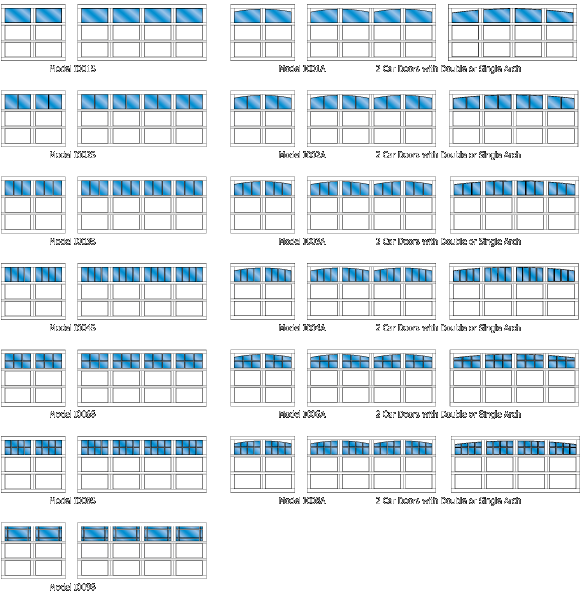

DESIGN PRODUCT INFO BROCHURE
WARRANTY




  • CONSTRUCTION: Infinity Classic is constructed of commercial grade extruded aluminum alloy stiles and rails. Mechanical fasteners that connect the stile and rails are extremely strong and visually undetectable. The aluminum panels that are used in the door are laminated and 50 times stronger than standard aluminum panels. The panels as well as the door frame are available with a polystyrene insulation. Windows are standard with clear annealed glass and a grid overlay which creates the window design. The Infinity Classic comes standard with a white polyester finish or can be field painted if desired. Eight wood grain powder coated finishes are now available.

    NOMINAL SPECIFICATIONS:

    • Frame: 2" thick extruded aluminum 6063-T5
    • Section Joints: Tongue and Groove Joints with compressible foam gasket between sections
    • Top & Bottom Rail widths: 5-7/8"
    • Meeting Rail width combined: 4-3/16"
    • End Stile width: 5-7/8",
    • Center Stile width: 7-3/4", 3-1/4"
    • Mullions: 1-1/2"
    • Panels: 1/4", aluminum both sides with laminated polyvinyl honeycomb core
    • Panels: 1", aluminum both sides with laminated polyvinyl and polystyrene core
    • Arches: Standard radius for doors up to 10' wide door are 15'-0" radius, those over 10' wide are a single 58'-0" radius or two 15'-0" radius arches (double arches)
    • Bottom weather seal: U-shape loop type vinyl
    • Finishes: White polyester vinyl
    • Limited Lifetime Warranty
    STANDARD WIDTHS:
    8'-0"
    9'-0"
    10'-0"
    16'-0"
    18'-0"
    20'-0"

    STANDARD HEIGHTS:
    7'-0"
    8'-0"
    9'-0"
    10'-0"
    12'-0"
    14'-0"

    Sections do not exceed 32"in height

    OPTIONS:

    • Widths up to 20', heights up to 14', in one inch increments (180 max. sq. ft. total)
    • Insulation, frame and panels insulated with polystyrene
    • Decorative hardware
    • 25,000, 50,000 & 100,000 cycle torsion springs
    • 1/8" clear annealed glass standard, clear obscure and insulated glass optional
    • Low clearance, high lift or vertical lift track and hardware also available

    HARDWARE: 15" or 20" radius torsion hardware; track is 2" bracket mounted. Quiet long life nylon rollers, non corrosive door fixtures and graduated hinges are standard. U-shaped galvanized struts are supplied with every double car door to keep the door rigid.

    AVAILABLE COLORS*:
    * The actual color may slightly vary from what you are seeing, depending on the color calibration of your computer monitor.
